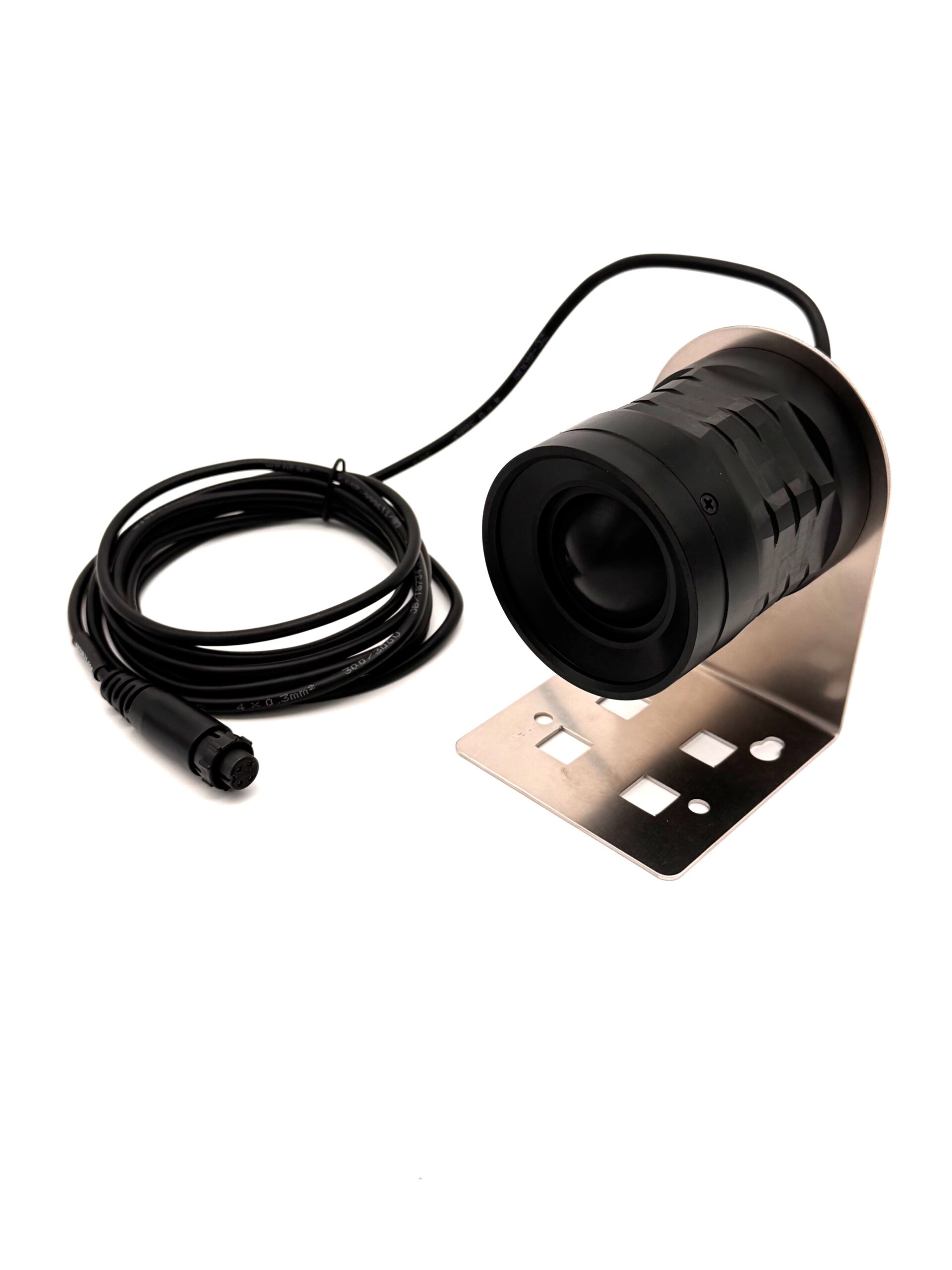

RADAR LEVEL SENSOR (0-12M)

Radar Level Transmitter:

• Low-Power Design
• 60 GHz millimeter wave radar distance sensor
• Continuous, non-contact measurement for liquids, slurries and solids
• Measuring range: 0.2 to 12 m
• Output / Communication: Modbus RTU RS485 (2-wire)
• Power supply: 5V DC, Current: 35-50 mA at 5V DC
• Cable length: 3 metres
• Connector: Factory terminated with Site Sentinel® 4-Pin Connector
• Beam Angle: 8°
• Accuracy: ± 2 mm
• Process temperature: -40 to +85 °C
• IP Protection Rating: IP68
• Non-Ex Rated
• Integrated leveling sight bubble to assist with installation

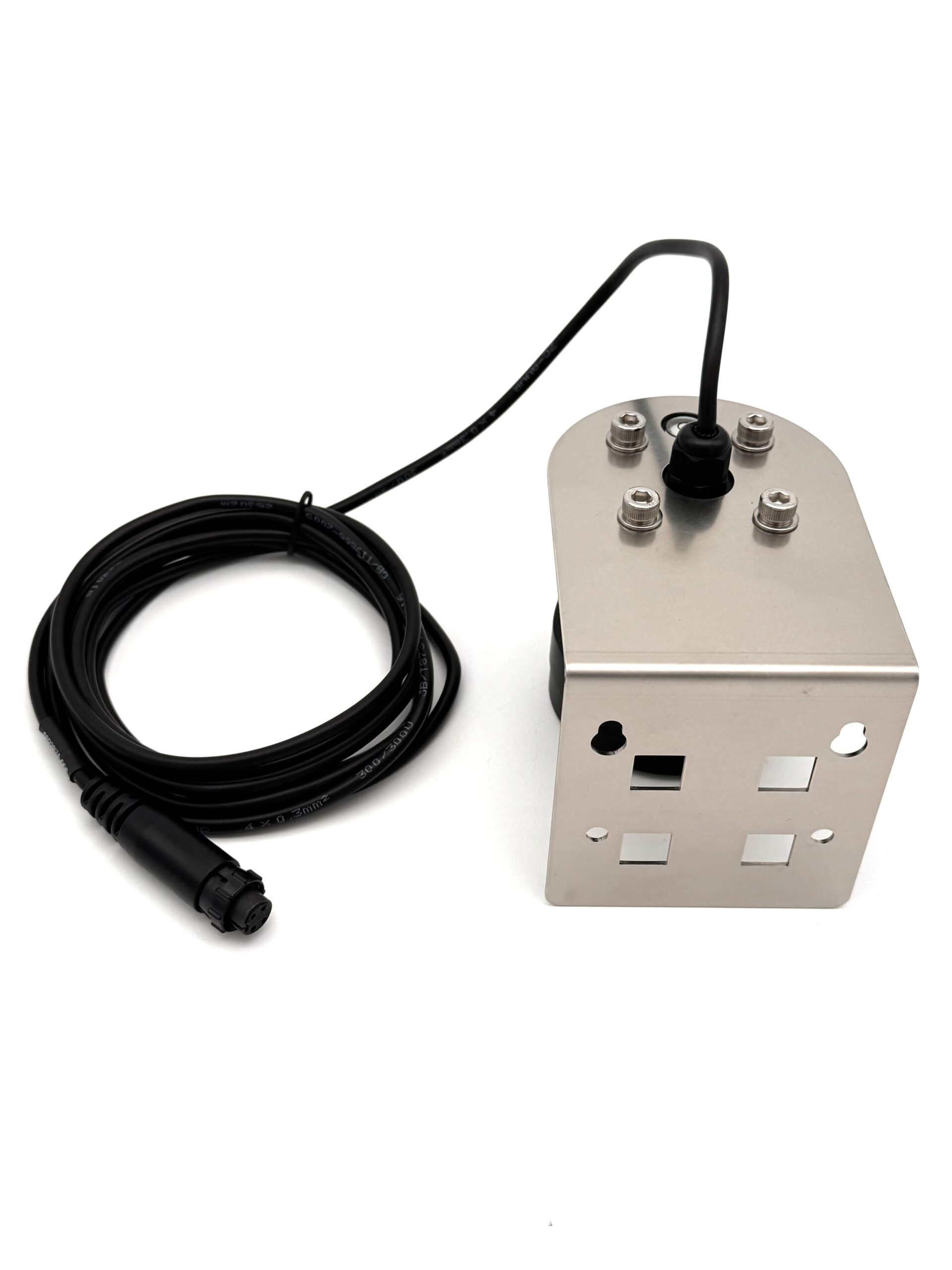

• Supplied with Right-angle stainless steel multi-mount bracket

Designed for plug-and-play deployment and direct connection to Modbus Port on Site Sentinel® X1-002-DA-4G or X1-003-DA-4G Data Logger variants.

This is a standard stocked item.
