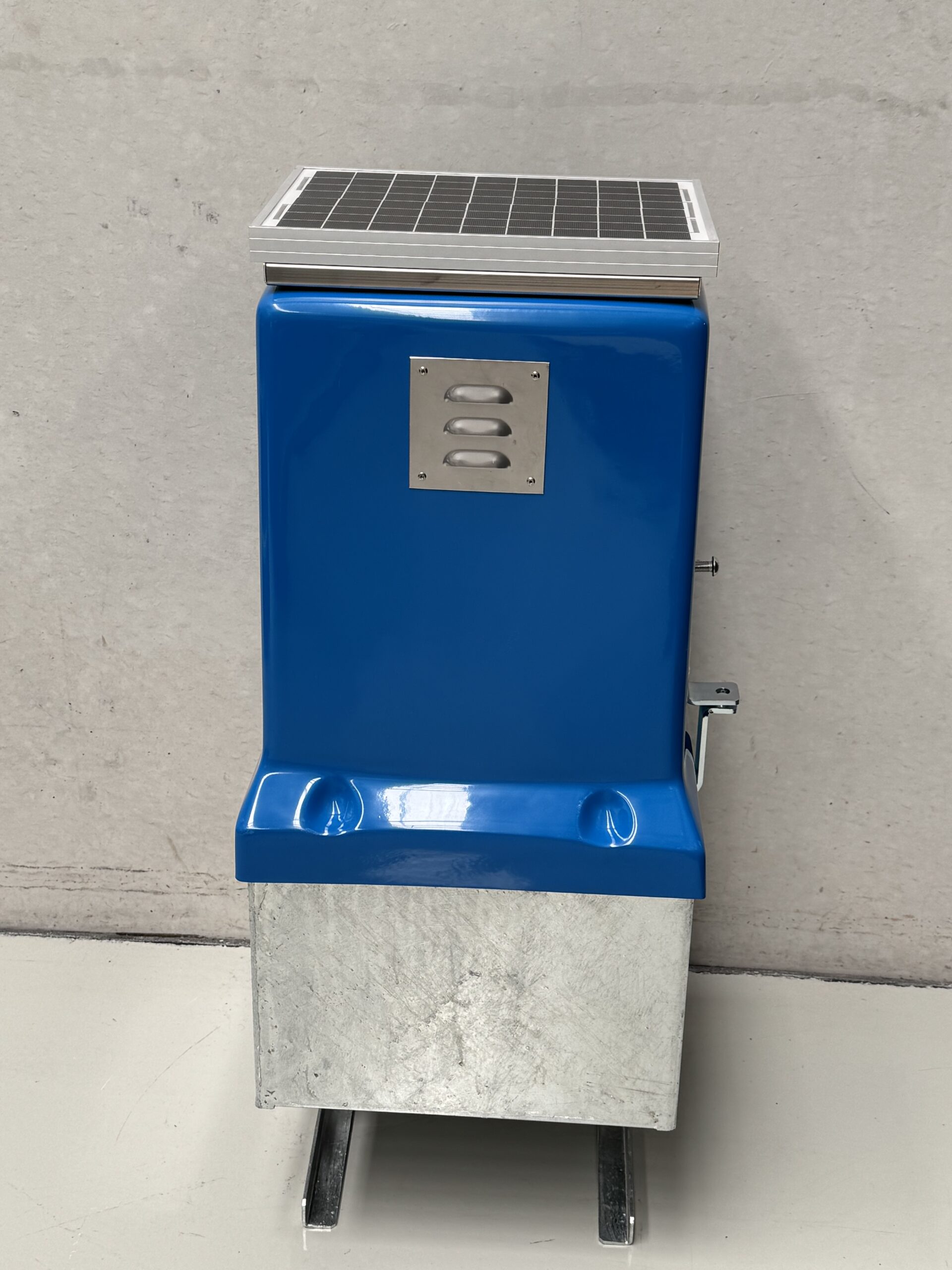

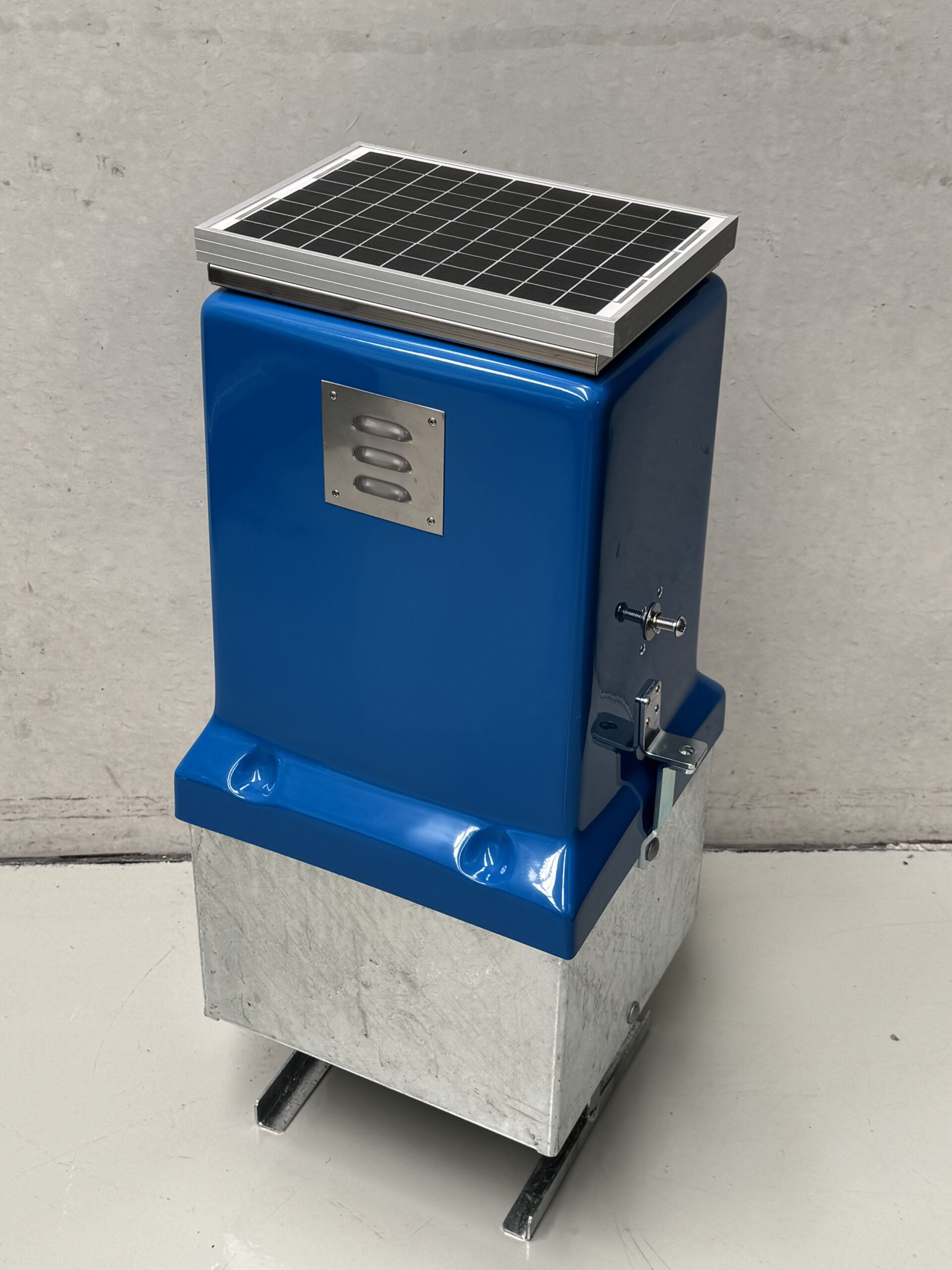

Site Sentinel® Permanent Water Quality Monitor Pillar (1-Sensor)

Water Quality Monitoring – One (1) Sensor (Pillar Enclosure)

Ideal for permanent low-impact Real-Time Water Quality Monitoring on:

• Potable Reticulated Water Grids
• Reservoir Outlets

No Mains Power Required – Deploy anywhere in your network !

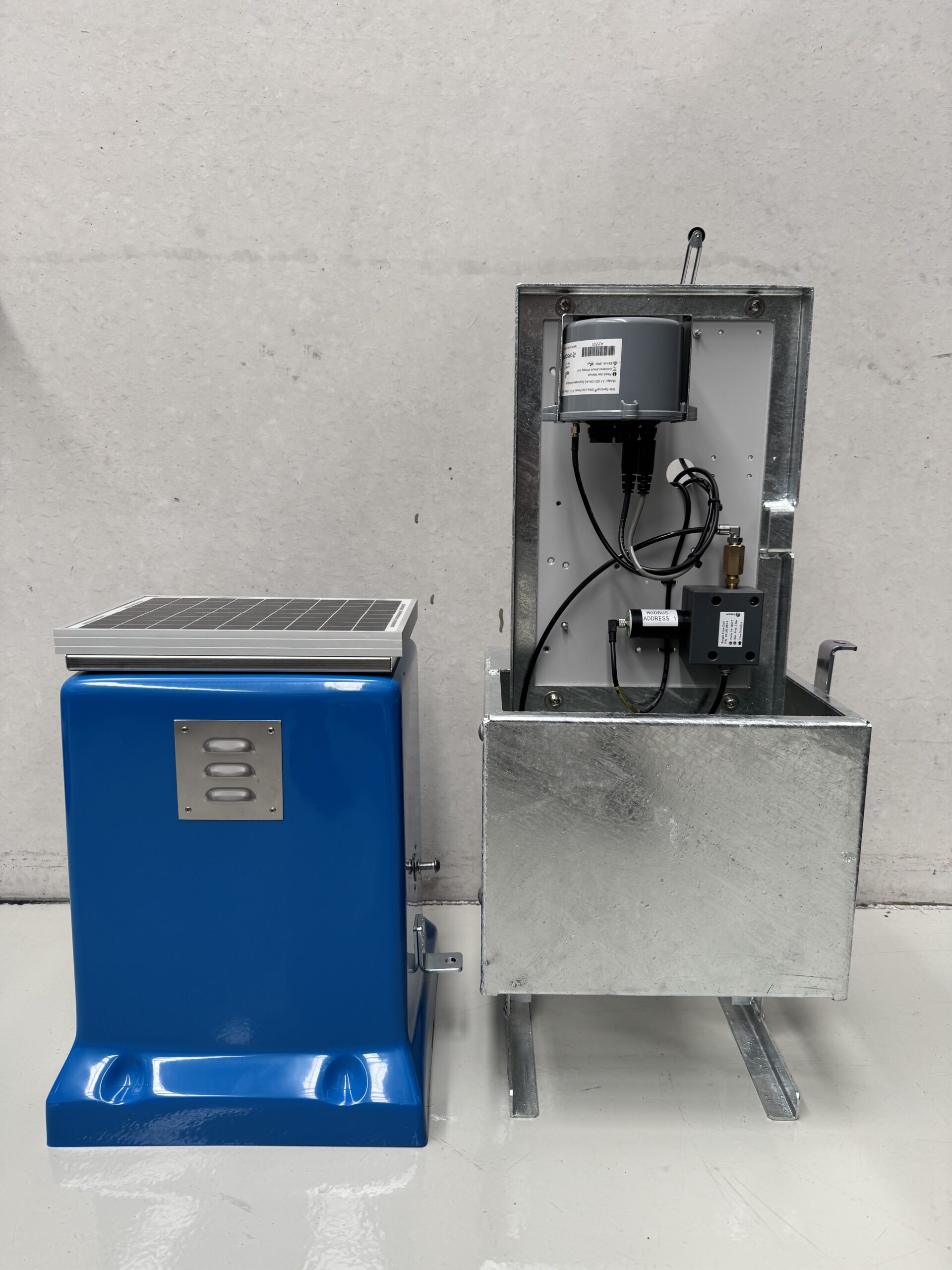

Equipment Package Includes:

• 37South Premium Pillar Enclosure
• Integrated 10-Watt Solar Panel
• Factory built package arrives ready to deploy !
• Site Sentinel® X1-002-DA-4G Logger
• Direct Modbus data connection to Water Quality sensor
• Site Sentinel Logger Powers the Water Quality sensor

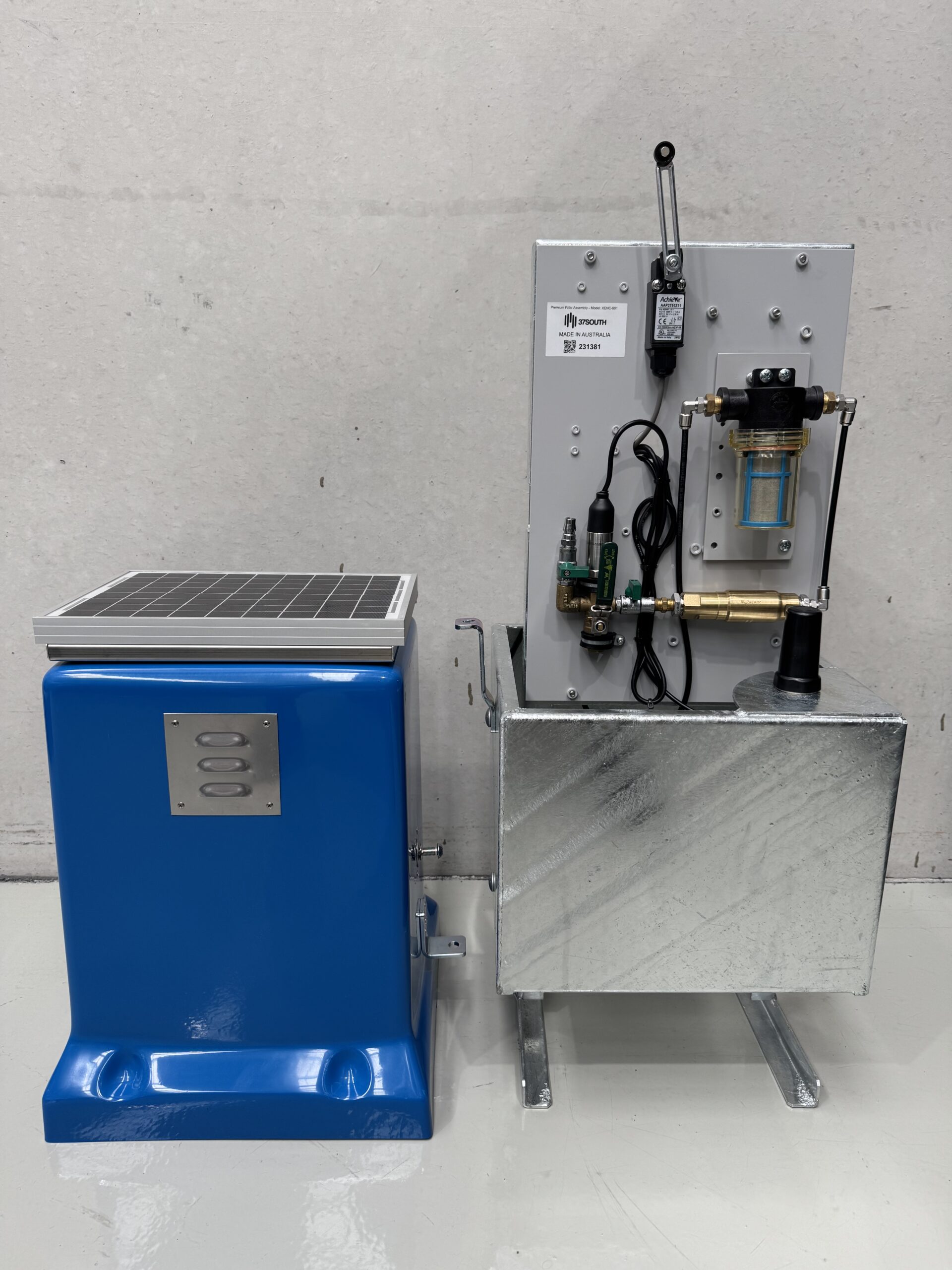

• 37South 1-Slot Flow Cell with Pre-set Flow control valve
• Inline strainer with stainless-steel 304 micron mesh filter
• Inline strainer features clear removeable bowl
• Sensing sampling and drain lines
• Intruder Switch to alert on pillar lid removal
• Inline PRV Valve with Check Valve (16-Bar max. pressure)
• Suits inlet pressures greater than 300 kPa (3-Bar)
• Isolation valve assembly, with high-pressure flush valve

Package Options:

• External Solar / Antenna Mast with High gain antenna
• Pipeline Pressure Sensor
• Local Display (Recommended for in-field sensor calibration)
• Flow / No Flow detection switch
• Green or Blue equipment pillar lid

Choose one ATi M-Node sensor from 15 different measurement types:

• Free Chlorine
• Combined Chlorine
• Total Chlorine
• Chlorine Dioxide
• Conductivity
• 4E Conductivity
• Dissolved Oxygen
• Dissolved Ozone
• Fluoride
• Hydrogen Peroxide
• Nitrite
• ORP
• Peracetic Acid
• pH
• Turbidity

Equipment Package Options:

• ProcessrIO® Cloud Hosted Data Service for non-SCADA customers
• Field installation services

This is a 37South Factory Built Equipment Package with four (4) week typical lead-time.
