Wall Mounted General Purpose I/O Monitoring (2AI, 2DI/CT, 2DO, MODBUS)

Wall Mounted Pre-Built General Purpose I/O Monitoring Equipment Package.

• 2 x Analog Inputs (0-5V or 0-20mA)
• 2 x Digital Inputs / Counters (Dry-Contact)
• 2 x Relay Outputs (Dry-Contact, Form C, 1 Amp Rating)
• 1 x Modbus Master RTU RS485 Serial Comms Port (2-wire)

Ideal for permanent monitoring in any General Deployment application.

• Lift Station Monitoring.
• Pressure Sewer Pump Stations.
• Elevated Water Towers.
• Water Booster Pump Stations.

Equipment Package Includes:

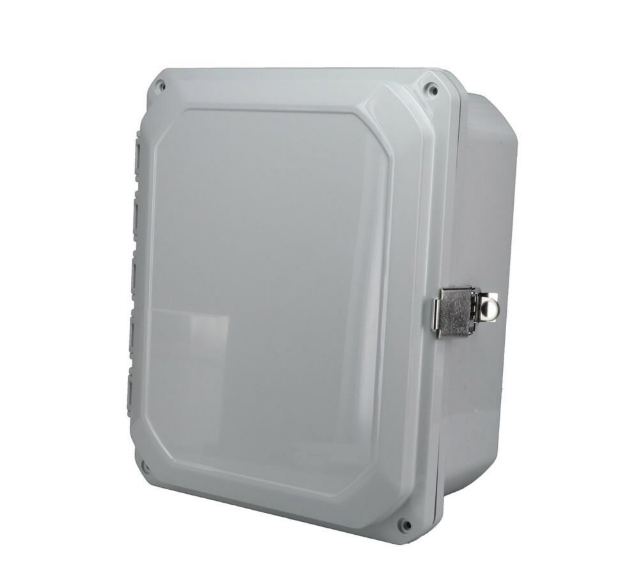

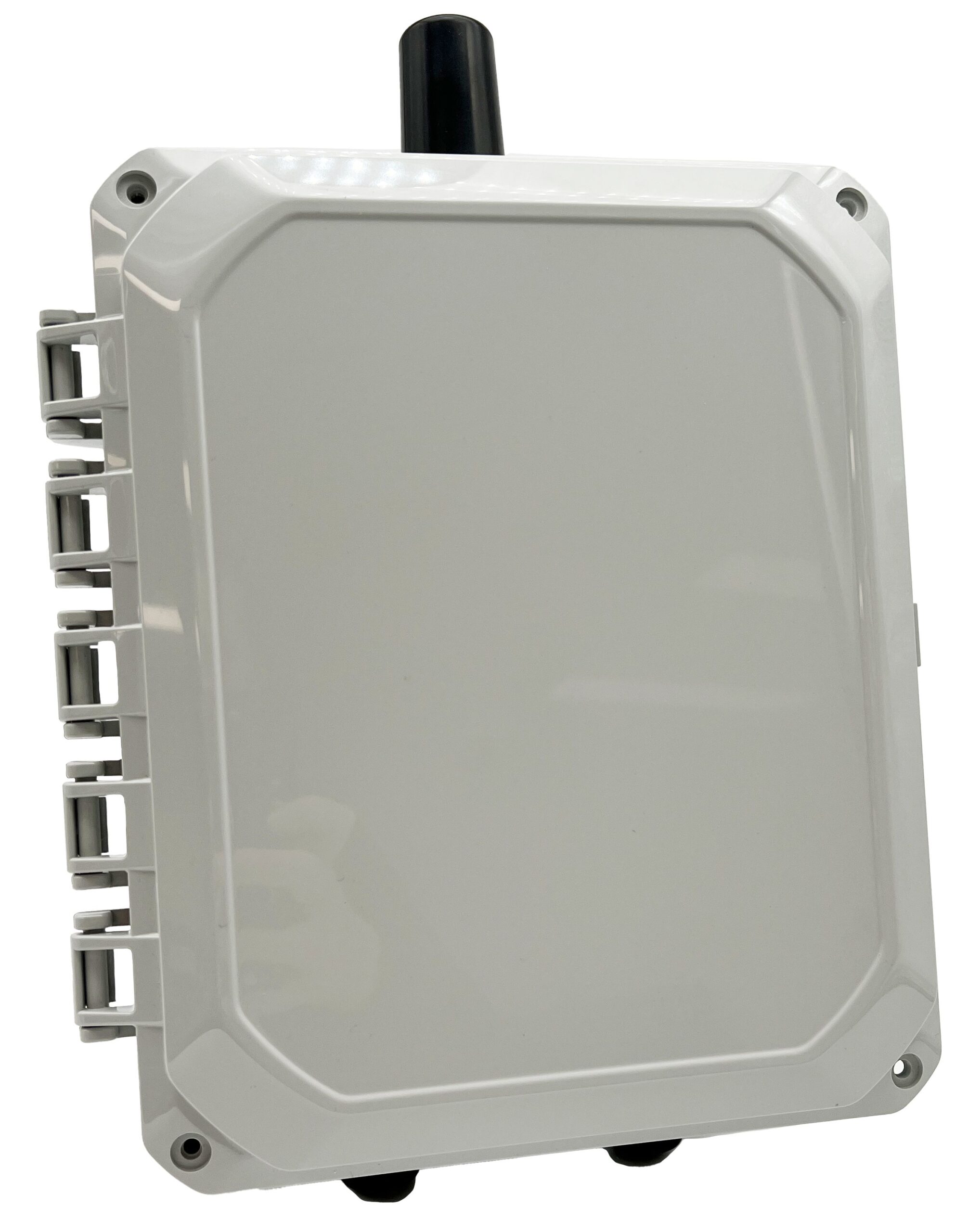

• Wall Mounted IP68 Polycarbonate enclosure
• DIN rail mounting rail
• 110-240 VAC DIN Rail Power Supply
• 4G Antenna
• Wall mount bracket set
• 2 x M20 Cable glands

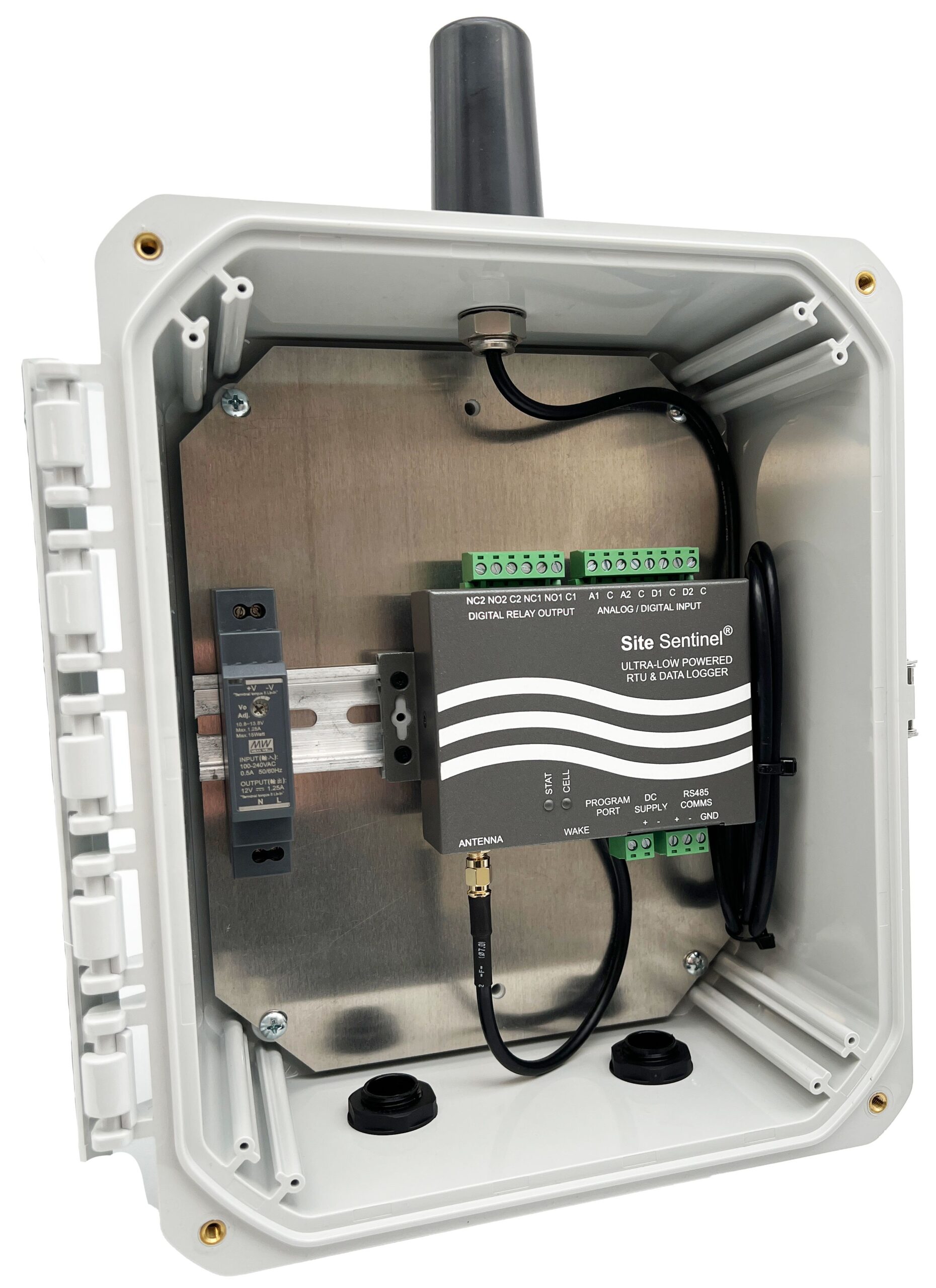

• Pre-built and wired to suit Site Sentinel® P2-002-EA-4G Logger.

This is a standard stocked item.
